GE DS200ITXSG1ABB Inverter Snubber Board Mark V 330mm x 200mm

GE DS200ITXSG1ABB Inverter Snubber Board Mark V

Product Details:

The GE DS200ITXSG1ABB is an Inverter Snubber Board designed for GE’s Drive Control series, tailored for three-phase power applications. It functions as an interface board mounted directly onto power modules—one board per phase leg, totaling three units for a full system. Its core role is reducing inductance between power modules and suppression circuits by shortening the electrical path, which minimizes energy losses, boosts power conversion efficiency, and enhances system stability.

It also integrates with suppression circuits to mitigate transients and electromagnetic interference, protecting power modules and connected loads from voltage spikes. Key connectors enable phase-specific connections: APL for Phase A, BPL for Phase B, and CPL for Phase C, ensuring precise interfacing with each phase’s power module.

Key Features:
Three-Phase Optimization: Designed for 3-phase systems, ensuring balanced inductance reduction and performance across all phases.

Inductance Reduction Core: Mounts directly on power modules to shorten electrical paths, minimizing inductance—critical for cutting energy losses and improving power conversion efficiency.

EMI & Transient Mitigation: Works with suppression circuits to dampen transients and reduce EMI, safeguarding power modules and loads from voltage spikes and disturbances.

Phase-Specific Connectivity: APL/BPL/CPL connectors enable direct, phase-matched links to A/B/C power modules, ensuring precise control and consistent inductance reduction per phase.

GE DS200ITXSG1ABB inverter snubber board

Mark V turbine control board

330mm x 200mm snubber board

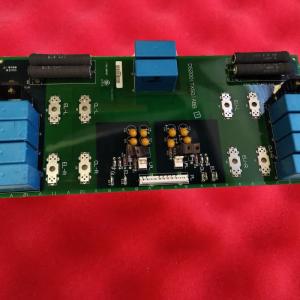

GE DS200ITXSG1ABB Inverter Snubber Board Mark V 330mm x 200mm Images
